Amino H200 Player as Digital Signage Player

Experience top-tier digital signage performance with EasySignage’s support for Amino H200 and H200W set-top boxes, bringing together robust performance across retail, hospitality, education, and more.

To make things even easier, EasySignage comes preinstalled on Amino H200 series devices, allowing users to get started immediately. In case the app is not preloaded, users can simply follow our installation guide to manually download and install EasySignage onto the device.

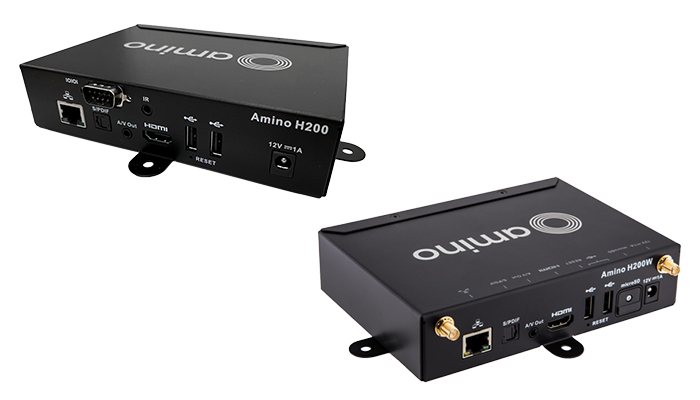

The Amino H200 and H200W are Android-based STBs (Android 10), built for “out-of-sight” commercial deployment, and designed for high-performance multimedia playback and enterprise-grade security.

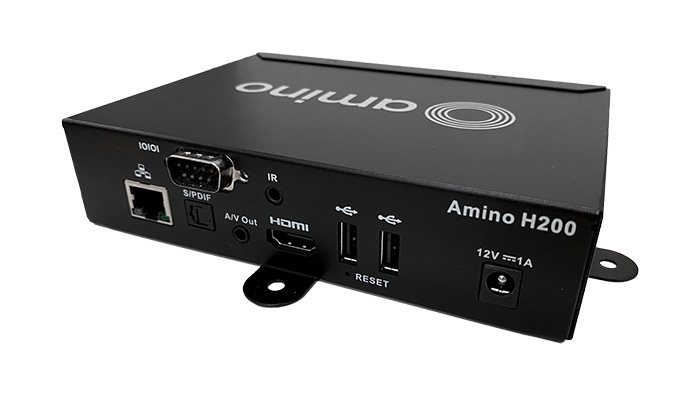

Specs of Amino H200:

  • Processing & Storage: 21.8 K DMIPS CPU, 2 GB RAM, 8 GB eMMC flash.
  • Resolution / Graphics: Supports AV1 & HEVC decoding at up to 4Kp60, HTML5/WebGL graphics.
  • Audio / Video Outputs: HDMI 2.1, composite/analog (CVBS + audio), optical S/PDIF, RS232/TVI (serial), IR extender port, 2x USB 2.0.
  • Connectivity: Gigabit Ethernet with PoE and multicast/unicast support.
  • Physical / Build: Rugged, tamper-proof chassis with integrated VESA mount; dimensions: 158×121×38 mm, weight ~500 g.

Specs of Amino H200W:

  • Processing & Storage: 21.8 K DMIPS CPU, 4 GB RAM, 32 GB eMMC storage.
  • Resolution / Graphics: supports 4Kp60 AV1/HEVC, HDR10+ & HLG, HTML5/WebGL graphics.
  • Audio / Video Outputs: HDMI 2.1, optical S/PDIF, CVBS + analog audio, IR extender, RS232/TVI, 2x USB 2.0.
  • Networking & Wireless: Gigabit Ethernet with PoE; built‑in Wi‑Fi 6 and Bluetooth (BLE 5.2) with 2 external antennas.
  • Physical / Build: Rugged, tamper‑proof chassis with VESA mount; dimensions ~158×121×38 mm (antenna adds height), weight ~540 g.

Amino’s secure Android platform aligns perfectly with EasySignage’s remote content control, device monitoring, and automatic updates. This combination of durable hardware and robust software makes it the ideal solution for digital signage networks that require high performance, security, and scalability.
